Coil Winders

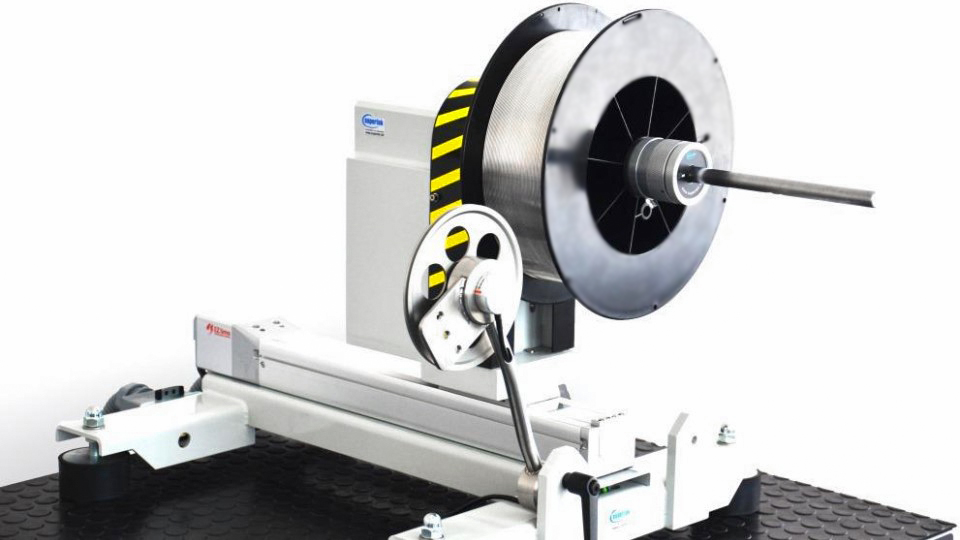

A Coil Winder is a specialized machine used to produce coils by precisely winding wire or other materials onto a spool. These machines are utilized in various industries, including electrical engineering, telecommunications, medical technology and the automotive sector.

Function

The primary purpose of a coil winder is to accurately wind wire or fibers onto a specific structure to ensure desired electrical, mechanical or magnetic properties. The machine provides:

• Constant tension: Prevents wire breakage and uneven winding.
• High precision: Ensures exact parameters like winding density, pattern and direction.
• Efficiency: Automated processes reduce manual labor and increase productivity.


Main Components

1. Spool Holder
   A device that holds the spool in place, ensuring secure winding.

2. Wire Guide
   Guides the wire with precise tension and direction onto the spool.

3. Drive System
   Controls the rotation speed and movements of the machine.

4. Programmable Logic Controller
   Allows customization of winding patterns and specific requirements.

5. Sensors
   Monitor wire tension, position and winding quality in real-time.

Applications

• Transformers: Winding copper or aluminum wire for magnetic cores.
• Electric Motors: Producing rotor and stator coils.
• Fiber Optics: Precision winding for communication applications.
• Inductors: Winding for electrical filters and circuits.
• Medical Technology: Winding fine wire coils for devices like MRI or ultrasound.

Types of Coil Winders

1. Manual Coil Winders
   Simple machines for smaller production volumes, operated manually.

2. Semi-Automatic Coil Winders
   Partially automated, ideal for medium-scale production.

3. Fully Automatic Coil Winders
   Advanced systems with high precision and speed, suitable for mass production.

Advantages of Modern Coil Winders

• Automation: Reduces errors and increases efficiency.
• Flexibility: Supports various materials and winding methods.
• Precision: Meets the high standards of advanced technology industries.
• Quality Control: Enabled through real-time monitoring and adaptive controls.

Market Leaders

Leading manufacturers of coil winders include companies like Supertek, known for developing high-precision winding machines for fiber optics, wire and specialized applications.
